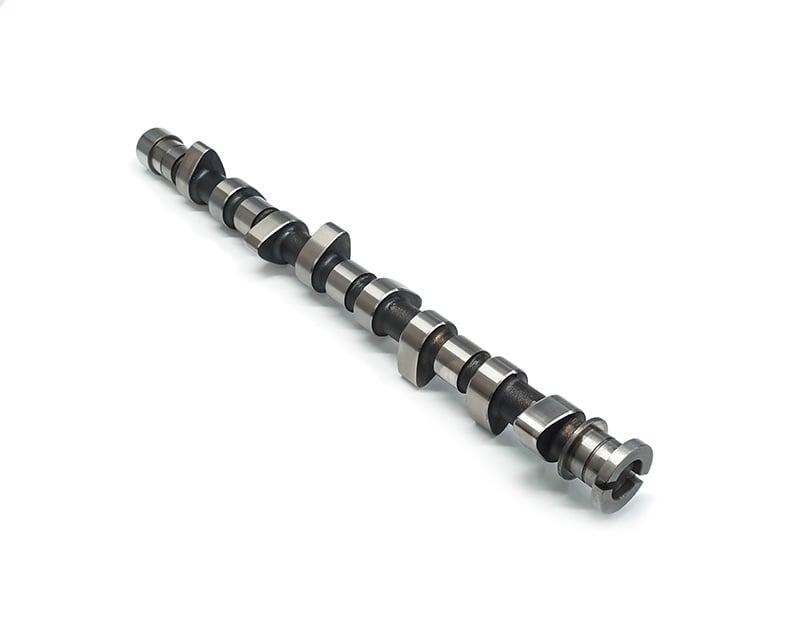

KL Racing - "H" Profile Camshaft

The H profile camshaft is the most aggressive redblock cam Volvo produced from the factory. This camshaft was originally used in early versions of the European market B23E engines and remains the only homologated cam used in Volvo Original Cup Racing.

For use with Volvo 8 valve B21, B23, and B230 engines with upgraded exhaust. This camshaft pairs best with manual transmissions as the majority of the powerband arrives around 3700 RPM continuing to 7000RPM. With its restless idle and high revving nature this cam is not for the faint hearted.

This camshaft has a distributor groove at the rear to accommodate head mounted distributors, however it will also work with block mounted distributors.

Lift intake: 12mm
Lift exhaust: 11.5mm
Cam angle: 109°
Duration: 272°in / 268°out

Lash caps are not needed.

Imported from Sweden.

Tech Tip: It is recommended to use motor oil containing zinc.
